| 外形尺寸: |
8200,8000,7450×2500,2550×3100,3200,3300 (mm) |
货箱尺寸: |
5500,5300,4850×2200,2100,2000×1400,1500,1600 (mm) |
| 总质量: |
18000 |
载质量利用系数: |
|
| 整备质量: |
7900,7500,7250 |
额定载质量: |
|
| 挂车质量: |
|
半挂鞍座: |
|
| 驾驶室: |
|
前排乘客: |
3,2 |
| 接近角/离去角: |
17/24,17/18,17/13,19/20,17/21,17/20,17/19,17/16 |
前悬/后悬: |
1400/1890,1400/2190,1400/2390,1430/1860,1430/2160,1430/2360,1430/1890,1400/1920,1400/2390,1430/2640,1400/2435,1455/2385,1430/2440,1430/1700,1400/2670,1430/2410,1430/2560,1430/2405,1400/2000,1400/2300,1400/3150 |
| 轴荷: |
6500/11500 |
轴距: |
3800,3950,4200,4500,4700,5000,5300,5800,5600,5100 |
| 轴数: |
2 |
**车速: |
89,98 |
| 油耗: |
26.81,24.4,26.0,25.2,25.1,23.9,23.8,23.8,23.8,23.8,23.8,23.8,26.57,26.57 |
弹簧片数: |
7/9+6,8/10+8,8/9+6,11/10+8,3/10+8,2/3+2,3/4+3,2/10+8 |
| 轮胎数: |
6 |
轮胎规格: |
10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR |
| 前轮距: |
1876,1896,1920,1950,1914,1934,1980,2000,1815,1860 |
后轮距: |
1820,1860,1800,1840 |
| 制动前: |
|
制动后: |
|
| 制操前: |
|
制操后: |
|
| 转向形式: |
|
启动方式: |
|
| Vin车辆识别代码: |
|

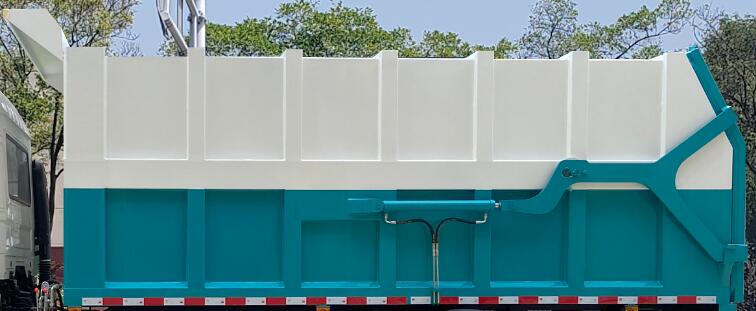

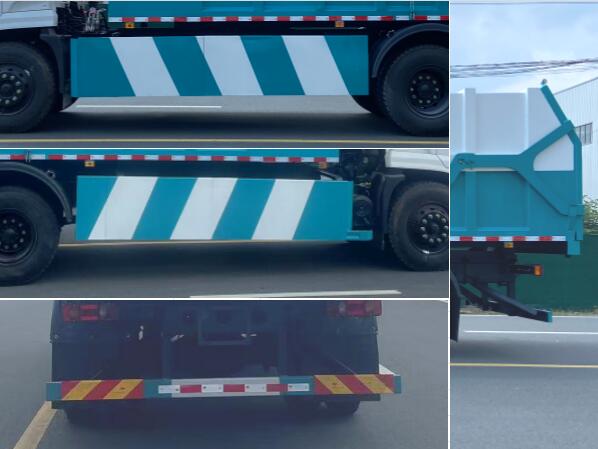

| 该车专用装置为箱体,液压**系统等专用装置,主要用于实现垃圾的装载和转运卸料作业.卸料方式为后卸.车厢顶部封闭,不可开启.侧防护采用Q235材质螺栓连接,后防护采用Q235材质焊接连接,后部防护断面尺寸为120×60mm,后部防护离地高度(mm):410.ABS型号/生产厂家:3631010-C2000/东科克诺尔商用车制动系统(十堰)有限公司,ABS 8/东科克诺尔商用车制动系统(十堰)有限公司, ABS-E 4S/4M/采埃孚商用车系统(青岛)有限公司,J ABS/焦作博瑞克**技术有限公司。发动机型号与油耗值(L/100km)对应关系为:D4.5NS6B220/26.81,D4.5NS6B190/24.4,D4.0NS6B195/26.0,D4.0NS6B185/25.2,DDi50E220-60/25.1,DDi50E190-60/23.9,D6.7NS6B260/23.8,D6.7NS6B230/23.8,B6.2NS6B260/23.8,B6.2NS6B245/23.8,B6.2NS6B230/23.8,B6.2NS6B210/23.8,DDi47E240-60/26.57,DDi47E210-60/26.57.该车型可选装ETC车载装置。安装带有卫星定位功能的行驶记录仪.整车尺寸/轴距/前后悬对应关系为:8200/4700/1400/2100,8200/4700/1430/2070,8200/4700/1455/2045,8000/4500/1400/2100,8000/4500/1430/2070,8000/4500/1455/2045,7450/3950/1400/2100,7450/3950/1430/2070,7450/3950/1455/2045.随底盘选装限速装置,限速89km/h。选装外观样式。仅采用10.00R20 18PR轮胎。 |
