| 外形尺寸: |
7580,7370,7100,6950×2550,2500×3200,3300,3400 (mm) |
货箱尺寸: |
4800,4500,4400×2250,2200,2180×1600,1500,1530,1450 (mm) |
| 总质量: |
16000 |
载质量利用系数: |
|
| 整备质量: |
6800,7000,7200 |
额定载质量: |
|
| 挂车质量: |
|
半挂鞍座: |
|
| 驾驶室: |
|
前排乘客: |
3,2 |
| 接近角/离去角: |
17/24,17/21,15/23,15/19 |
前悬/后悬: |
1250/2050,1250/2400,1250/2150,1450/1850,1450/2200,1450/1950,1285/2050,1285/2150,1285/2450,1450/2050,1450/2150,1450/2450,1250/2000,1310/2050,1285/1800,1285/1965,1250/2500,1250/2450,1450/2250,1310/1990,1310/2340 |
| 轴荷: |
5600/10400 |
轴距: |
3950,4200,4500,4700,5100,5600,4000 |
| 轴数: |
2 |
**车速: |
88 |
| 油耗: |
23.9,23.9,23.6,23.4,23.9,22.6,23.9,24.0,22.81,21.54,21.54 |
弹簧片数: |
9/11+8,9/10+8,3/4+3,4/5+4 |
| 轮胎数: |
6 |
轮胎规格: |
9.00R20 16PR,10.00R20 18PR,295/60R22.5 18PR |
| 前轮距: |
1820,1920,1950 |
后轮距: |
1800,1860,1820 |
| 制动前: |
|
制动后: |
|
| 制操前: |
|
制操后: |
|
| 转向形式: |
|
启动方式: |
|
| Vin车辆识别代码: |
|

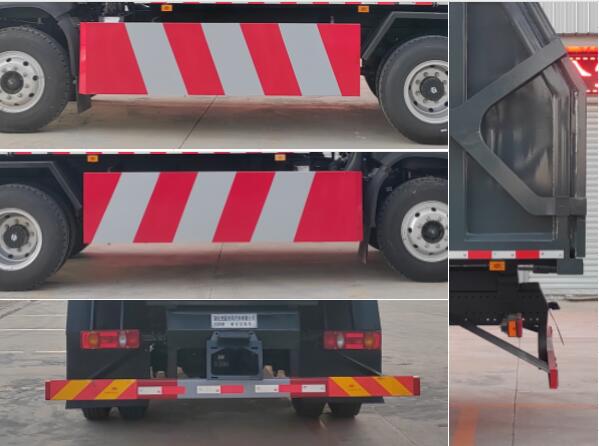

| 安装具有卫星定位功能的行驶记录仪,该车型可选装ETC车载装置。侧防护材料Q235B,螺栓连接;后防护材料Q235B,焊接连接,后防护截面高度尺寸120mm,截面宽度尺寸50mm,下边缘离地高度500mm;ABS型号及生产厂家为:3631010-C2000/东科克诺尔商用车制动系统(十堰)有限公司,J ABS/焦作博瑞克**技术有限公司;自卸方式为后卸式;车厢顶部封闭且不可开启;该车专用装置为垃圾箱,液压系统,用于垃圾装载和运输。发动机/油耗值(L/100km)对应关系为:YCY30165-60/23.9,YCS04200-68/23.9,D25TCIF1/23.6,D30TCIF1/23.4,YCS04160-68/23.9,YCY30170-60/22.6,YCS04180-68/23.9,D30TCIF-180/24.0,D43TCIF11/22.81,YCY30200-66/21.54,YCY30180-66/21.54。仅采用9.00R20 16PR,10.00R20 18PR型号轮胎。仅采用3950mm轴距;整车长/前悬/后悬对应关系为(mm):7580/1250/2380,7580/1450/2180,7580/1285/2345,7370/1250/2170,7370/1450/1970,7370/1285/2135,7100/1250/1900,7100/1450/1700,7100/1285/1865,6950/1250/1750,6950/1450/1550,6950/1285/1715.随底盘选装驾驶室样式。 |
