| 外形尺寸: |
8790,8820,9190,9220,9230,9260,8830,8860,8870,8900,9270,9030,9060,9300,9430,9460×2550×3180,3230,3300 (mm) |
货箱尺寸: |
×× (mm) |
| 总质量: |
18000 |
载质量利用系数: |
|
| 整备质量: |
9900,10200,10600 |
额定载质量: |
|
| 挂车质量: |
|
半挂鞍座: |
|
| 驾驶室: |
|
前排乘客: |
2,3 |
| 接近角/离去角: |
17/24,17/18,17/13,19/20,17/21,17/20,17/19,17/16 |
前悬/后悬: |
1400/1890,1400/2190,1400/2390,1430/1860,1430/2160,1430/2360,1430/1890,1400/1920,1400/2390,1430/2640,1400/2435,1455/2385,1430/2440,1430/1700,1400/2670,1430/2410,1430/2560,1430/2405,1400/2000,1400/2300,1400/3150 |
| 轴荷: |
6500/11500 |
轴距: |
3800,3950,4200,4500,4700,5000,5300,5800,5600,5100 |
| 轴数: |
2 |
**车速: |
89,98 |
| 油耗: |
23.80,23.80,23.80,25.20,26.60,24.40,23.70,26.57,23.90,25.10 |
弹簧片数: |
7/9+6,8/10+8,8/9+6,11/10+8,3/10+8,2/3+2,3/4+3,2/10+8 |
| 轮胎数: |
6 |
轮胎规格: |
10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR |
| 前轮距: |
1876,1896,1920,1950,1914,1934,1980,2000,1815,1860 |
后轮距: |
1820,1860,1800,1840 |
| 制动前: |
|
制动后: |
|
| 制操前: |
|
制操后: |
|
| 转向形式: |
|
启动方式: |
|
| Vin车辆识别代码: |
|

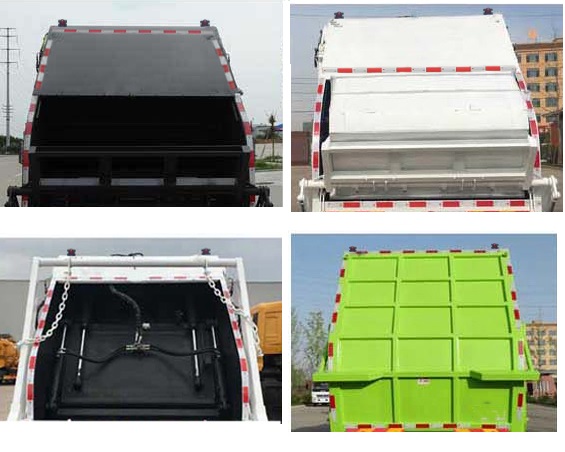

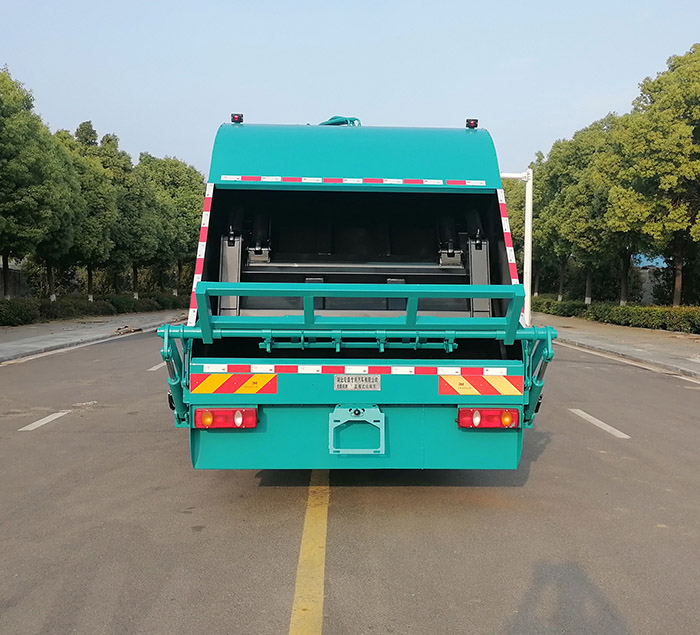

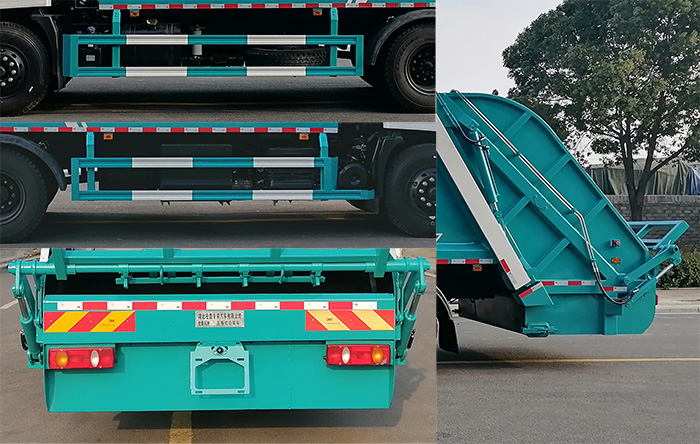

| 1、该车主要用于城市环卫垃圾压缩及运输;专用装置为厢体、压缩机构等;该车后上料装置为翻桶装置,选装三角斗装置、落地斗装置、摆臂装置;选装不同工作装置时整车长/前悬/轴距/后伸对应关系为(mm): ①翻桶装置:9030/1400/4500/360,9060/1430/4500/360,9430/1400/4700/360,9460/1430/4700/360; ②三角斗装置:8870/1400/4500/200,8900/1430/4500/200,9270/1400/4700/200,9300/1430/4700/200;③落地斗装置:8790/1400/4500/120,8820/1430/4500/120,9190/1400/4700/120,9220/1430/4700/120;④摆臂装置:8830/1400/4500/160,8860/1430/4500/160,9230/1400/4700/160,9260/1430/4700/160;仅选用轴距4500mm及4700mm.2、侧防护材料采用Q235,螺栓连接;后防护由专用装置替代,下边缘离地高:420mm.3、安装带有卫星定位功能的行驶记录仪.ABS型号/生产厂家:3631010-C2000/东科克诺尔商用车制动系统(十堰)有限公司,ABS 8/东科克诺尔商用车制动系统(十堰)有限公司、ABS-E 4S/4M/采埃孚商用车系统(青岛)有限公司,J ABS/焦作博瑞克**技术有限公司;装有限速装置,限速89km/h;可选装直接供电式ETC车载装置.仅采用的发动机型号与油耗值(L/100km)对应关系:B6.2NS6B210/23.80,B6.2NS6B230/23.80,B6.2NS6B260/23.80,D4.0NS6B185/25.20,D4.0NS6B195/26.60,D4.5NS6B190/24.40,D6.7NS6B230/23.70,DDi47E210-60/26.57,DDi50E190-60/23.90,DDi50E220-60/25.10.选装后尾部上料机构样式。随底盘选装电瓶/储气桶/后处理样式及安装位置。 |
